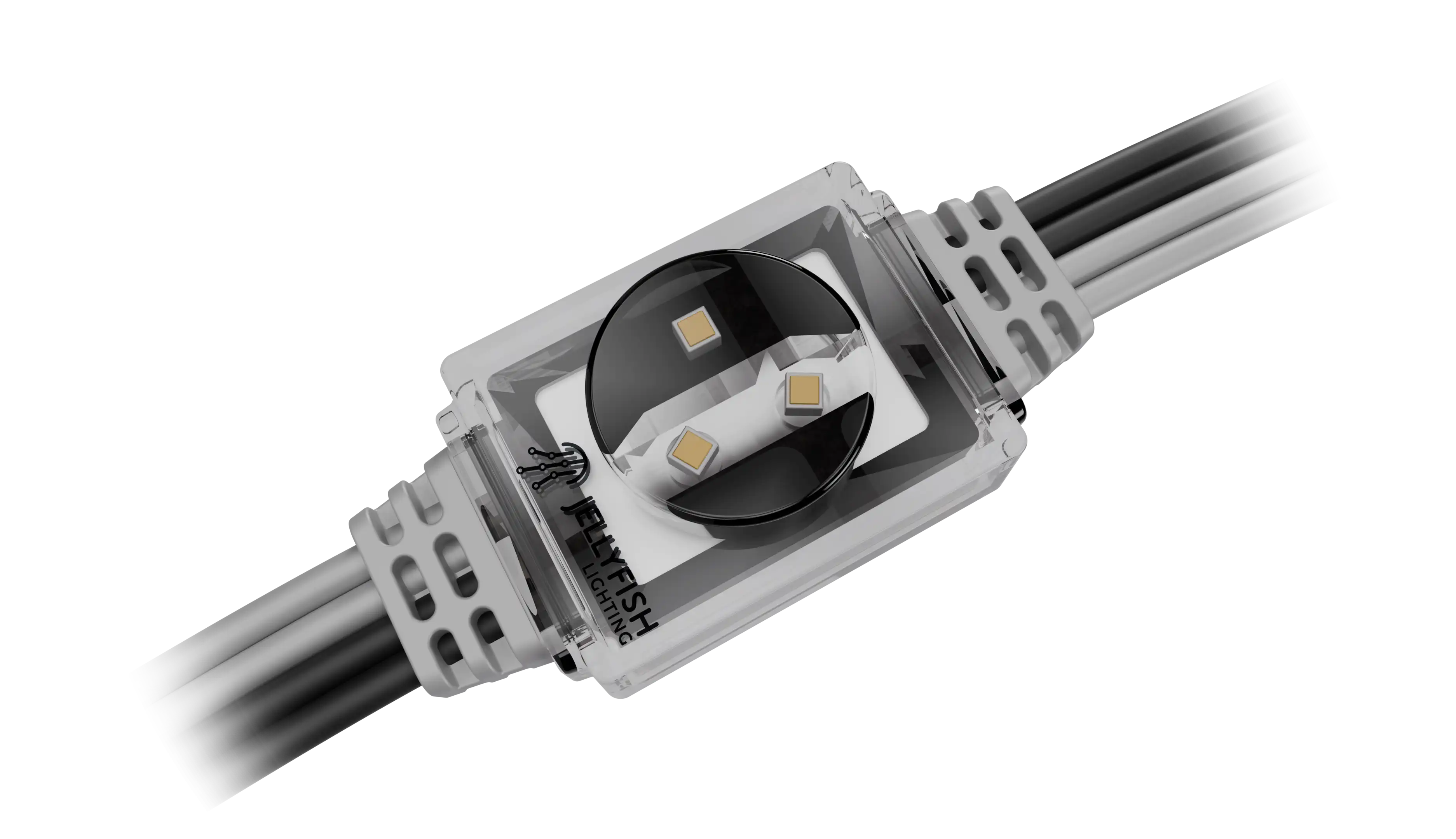

Diode (3 per Light)
16 Gauge Wire – Power, Communication, Ground
Capacitor
Chip for Each Diode
3/4″ x 1 1/4″
Pulls Less than 1 W of Power on Full Bright White
Lights are Spaced Every 9 inches
Full Spectrum RGB (over 16 Million Color Options)
48V DC Low Voltage Power Supply
Manual Control Panel (Also Controlled by an App on Apple or Android)
12V Power Supply Powers Controller
LED Light Strip Displaying Current Pattern
Port
Antena – Connects to WiFi and Receives Wireless Firmware Updates
Omega Chip is the “Brain” that Sits Behind Here
Can Power 250 feet of Lights – Additional Power Supplies can be Added to Power More Footage and is Installed Next to the Controller
Plugs into a Single Standard 110 Outlet
3/4″ x 1 1/4″
